| Stock: HX Series (HX520 / HX620) | Manufacturer: International |
Request a Quote
Detailed Specs
Additional Information
Severe Duty, Premium Vocational
52,000 - 92,000 lbs
6x4, 8x6 (Tridem options).
Diamond Trim, Diamond Elite Trim.
Day Cab, 56" Low/Hi Sleeper, 73" Hi Sleeper.
HX520 (120" BBC, Set-Forward Axle), HX620 (119" BBC, Set-Back Axle).
169 - 374 inches
International S13 (400-515 hp, 1,850 lb-ft), Cummins X15 (430-605 hp, 2,050 lb-ft).
Single or Dual Vertical Stacks; Horizontal options.
High-Strength Steel (Huck-bolted frame and cross members).
Dana/Meritor: 12,000 - 22,800 lbs. Optional: Wide Track for 40° wheel cut.
Multi-Leaf, Parabolic, Slipper-Type (24,000 lbs max).
Meritor/Dana Tandem: 40,000 - 70,000 lbs. Tridem: Up to 69,000 lbs.
Hendrickson (HAULMAAX EX, PRIMAAX EX, RT), Chalmers.
International T14 (14-speed Automated w/ 2 crawler gears), Eaton Manual, Eaton Endurant XD/XD Pro AMT, Allison Automatic.
Delco Remy/Leece-Neville (165 - 325 Amp).
1,980 - 3,800 CCAs.
60 - 240 Gallons (Single or Dual Aluminum/Steel).
.
Description

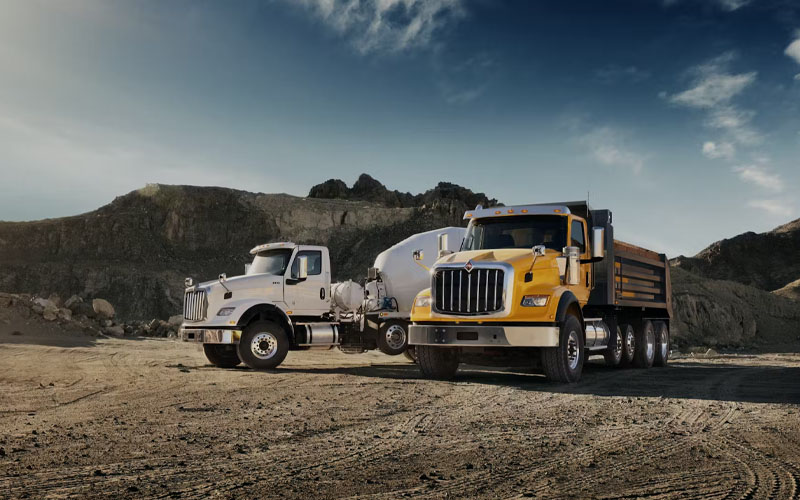

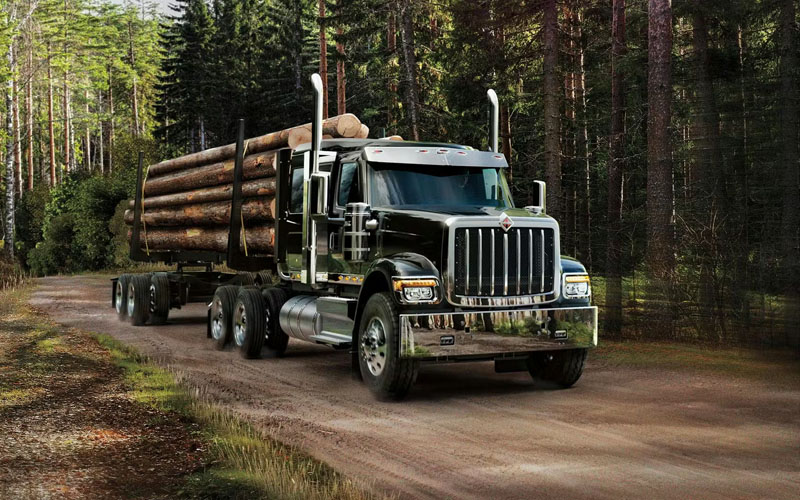

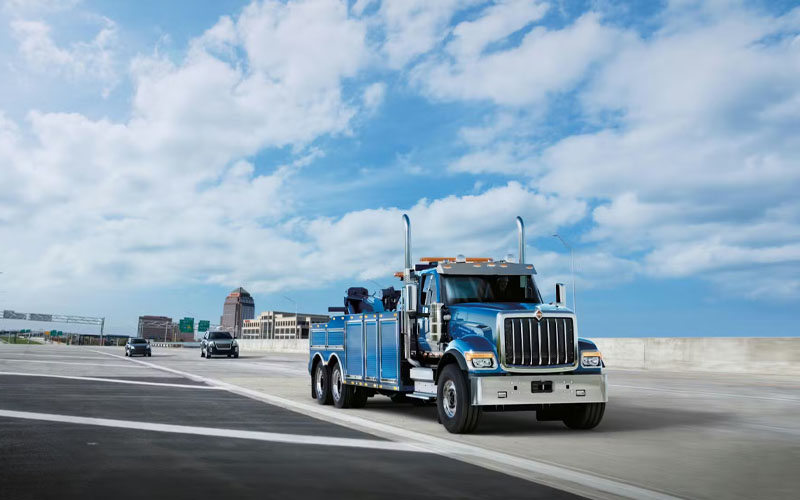

Purpose-built to dominate the world’s toughest jobs (Heavy Haul, Logging, Concrete, Dump). Features a premium steel cab and huck-bolted frame.
